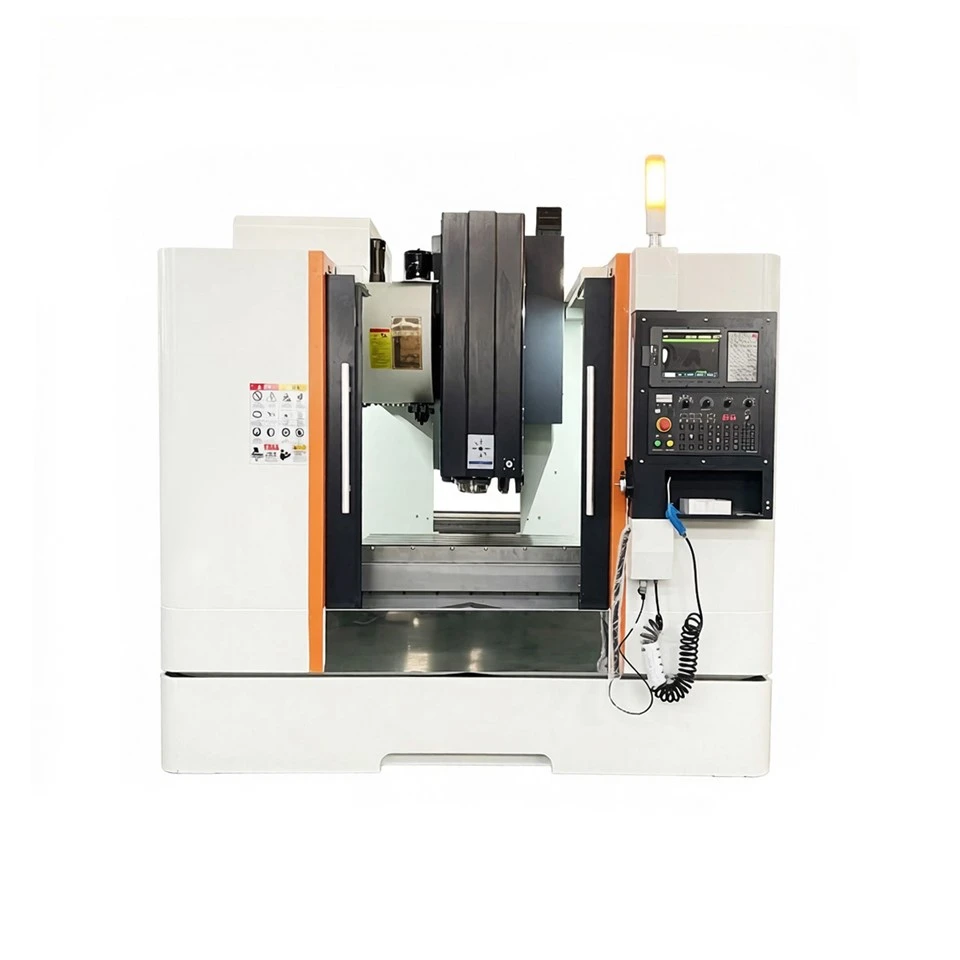

Versatile Milling rau ntau daim ntawv thov
Peb CNC ntsug machining chaw yog ntau yam kev daws teeb meem. Nws ua tau raws li qhov xav tau ntawm milling ntau lub rooj cob qhia. Txhua lub tshuab raug kuaj ua ntej xa khoom. Peb khiav txhua qhov tsawg kawg yog 8 teev. Peb siv qhov tseeb txiav pov thawj. Muaj cov ntsiab lus uas ntau tus neeg yuav khoom tsis nco. Nws yog kev sib raug zoo ntawm lub rooj loj thiab lub qhov ntswg ntxaiv - mus rau - rooj nrug. Ntau tus neeg siv khoom tsuas yog saib ntawm lub rooj loj. Tom qab ntawd lawv pom cov spindle mus txawv tebchaws tsis txaus rau siab workpieces. Peb muab ob lub rooj loj. Lawv yog 850 × 500mm thiab 1060 × 600mm. Tus qauv 850 muaj X, Y, Z taug kev ntawm 800, 500, thiab 600mm. Tus qauv 1060 tau mus txog 1000, 600, thiab 650mm. Lub rooj thauj khoom muaj peev xwm tsawg kawg yog 800kg rau 850 qauv. Tus qauv 1060 tuav tsawg kawg yog 1200kg.
Siab -Kev txiav ceev thiab kev tswj cov cuab yeej
Lub spindle taper yog BT40 rau kev siv dav dav. Peb kuj muab qhov hnyav -lub luag haujlwm BT50 xaiv. Tus qauv spindle ceev yog 8000 rpm. Peb muab 12000 rpm lossis 15000 rpm siab -speed spindles raws li kev xaiv. Lub tshuab siv 24-chaw nres tsheb disc{16}} hom ntawv xov xwm. Lub sijhawm hloov lub cuab yeej yog 2.5 vib nas this lossis tsawg dua. Peb -axis ceev traverse ceev yog 40, 40, thiab 36 m / min. Cov kev taw qhia yog cov menyuam-hom linear guideways. Ib tus neeg siv khoom hauv Brazil siv peb VMC1060 rau kev tsim kho tshuab valve lub cev. Cov khoom siv yog ductile hlau. Txhua qhov hnyav txog 65 kg. Lawv xav tau mills rau lub ntsej muag thiab xyaum 12 qhov. Lawv siv BT50 spindle nrog hnyav txiav tsis. Lub roughing txiav qhov tob yog 4mm nrog ib tug 0.25mm / rev pub. Qhov kawg flatness mus txog 0.012mm. Cov neeg siv khoom piv peb CNC ntsug machining chaw rau lwm hom. Peb lub tshuab yog 22% ntau npaum rau roughing. Kev ua tiav ntawm qhov chaw tiav kuj zoo ib yam.
Kev Pabcuam thiab Customization Options
Tus qauv spindle bearings yog peb precision angular hu bearings. Lawv xyuas kom muaj kev kub ceev khiav raug. Rau siab- qauv ceev, peb tuaj yeem siv cov kabmob ceramic. Lawv tsim kom muaj cua sov tsawg. Peb tsom mus rau kev sib txuas lus zoo. Thaum peb xub hu rau koj, peb nug txog koj cov khoom, qhov loj me, cov khoom xav tau, thiab cov kev xav tau raug. Tom qab ntawd peb pom zoo kom siv lub tshuab, kev npaj kho, thiab cov cuab yeej siv. Koj tuaj yeem tuaj xyuas peb lub Hoobkas. Koj tseem tuaj yeem xa peb cov khoom ua haujlwm dawb paug rau kev kuaj txiav. Peb qhov kev pab cuam tom qab muag tau muab qhab nia los ntawm kev ceev. Rau A- teeb meem hauv chav kawm, peb teb tsis pub dhau 2 teev. Rau B-chav kawm, peb muab kev daws teeb meem hauv 24 teev. Rau C-chav kawm, peb teb hauv ib hnub ua haujlwm. Cov khoom txheem xa tuaj hauv 1 lub hlis. Peb lees txais thib peb- tog tshuaj xyuas rau txhua qhov CNC ntsug machining chaw.
Technical Parameters
|
Parameter |
Qauv: 850 |
Model 1060 Nws |
|
Table Loj (mm) |
850 × 500 |
1060 × 600 |
|
X-axis Travel (mm) |
800 |
1000 |
|
Y-axis Travel (mm) |
500 |
600 |
|
Z-axis Mus ncig teb chaws (mm) |
600 |
650 |
|
Table Load peev (kg) |
Ntau tshaj los yog sib npaug rau 800 |
Ntau tshaj los yog sib npaug rau 1200 |
|
Spindle Taper |
BT40/BT50 |
BT40/BT50 |
|
Spindle Ceev (rpm) |
8000 (12000 / 15000 yeem) |
8000 (12000 / 15000 yeem) |
|
Tool Magazine Peev xwm |
24-chaw nres tsheb Disc |
24-chaw nres tsheb Disc |
|
Tool Hloov Sijhawm (s) |
Tsawg dua lossis sib npaug li 2.5 |
Tsawg dua lossis sib npaug li 2.5 |
|
3-axis ceev Traverse (m / min) |
40 / 40 / 36 |
40 / 40 / 36 |
