Nqis Milling rau cov khw me

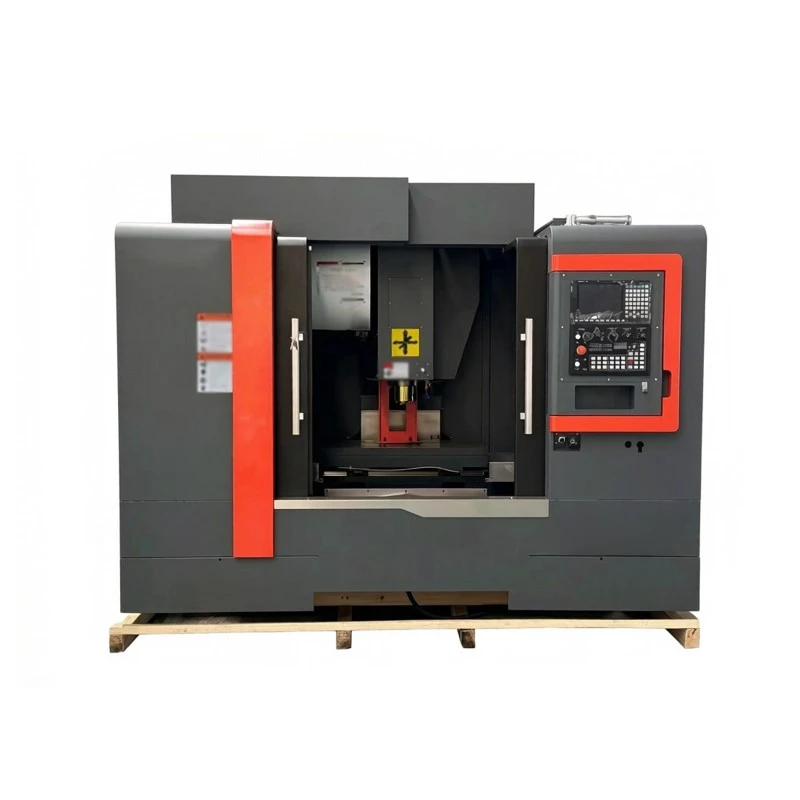

Peb lub tshuab CNC milling yog cov khoom lag luam. Peb tsim nws rau me me -batch thiab yooj yim milling txoj hauj lwm. Nws tsis muaj cov cuab yeej hloov pauv tsis siv neeg. Koj hloov cov cuab yeej manually. Qhov no ua rau lub tshuab yooj yim thiab txhim khu kev qha. Tus nqi peev yog tsawg. Nws yog zoo meej rau cov khw me me, chav kho pwm, thiab cov tsev kawm txuj ci. Ntau tus neeg nug txog qhov sib txawv ntawm CNC zeb thiab lub chaw machining. Qhov txawv tsis yog lub cuab yeej hloov pauv xwb. Nws kuj yog qhov rigidity thiab raug. Lub chaw machining muaj ib lub txaj hnyav dua thiab dav dua kev taw qhia. Nws yog tsim rau hnyav, nruam txiav. Peb lub tshuab CNC siv lub pob linear guideways. Nws txav tau yooj yim thiab zoo rau lub teeb txiav.
Lub teeb txiav rau Aluminium thiab Me Me Qhov Chaw
Lub rooj loj yog 600 × 300mm lossis 800 × 400mm. X, Y, thiab Z mus ncig yog 600/300/400mm lossis loj dua. Lub spindle taper yog BT30 lossis BT40. Lub spindle ceev yog 6000 rpm. Lub rooj thauj khoom muaj peev xwm yog 400kg lossis tsawg dua. Peb hais kom machining txhuas, tooj liab, yas, los yog me me hlau qhov chaw. Ib tus neeg siv khoom hauv Indonesia siv lub tshuab no rau lub cev maus taus carburetor. Cov khoom siv yog tuag-cast aluminium. Txhua feem xav tau rau lub ntsej muag milled thiab yim qhov drilled. Cov neeg siv khoom siv phau ntawv zeb ua ntej. Tus neeg teb xov tooj yuav tsum ntsuas thiab kho rau txhua qhov. Cov zis txhua hnub tsuas yog 40 daim. Nrog peb lub tshuab CNC milling, tus neeg teb xov tooj tsuas yog clamps qhov thiab nias pib. Cov zis txhua hnub tau nce mus rau 120 daim. Tus neeg teb xov tooj hloov cov cuab yeej manually txog peb zaug ib zaug. Txhua qhov kev hloov pauv tau siv sijhawm 2 feeb. Qhov no tsis cuam tshuam tag nrho cov khoom tsim tau ntau.
Kev Ncaj Ncees thiab Warranty
Qhov chaw qhov tseeb yog ± 0.01mm. Peb ncaj ncees txog lub tshuab no txwv. Yog tias koj xav tau tshuab cov ntaub ntawv nyuaj nrog kev txiav loj, peb xav kom lub chaw machining. Peb tsis xav kom koj xaiv lub tshuab tsis raug. Lub warranty yog ib xyoos. Tom qab ntawd, peb muab kev txhawb nqa rau lub neej. Lub sij hawm xa khoom tus qauv yog 1 lub hlis. Kev cai txiav txim yuav siv sij hawm 2 lub hlis. Kev them nyiaj yog 30% ua ntej. Txhua lub tshuab CNC milling tau ntim rau hauv rooj plaub ntoo rau kev xa tawm.
Technical Parameters
|
Parameter |
Qauv me me |
Qauv nruab nrab |
|
Table Loj (mm) |
600 × 300 |
800 × 400 |
|
X-axis Travel (mm) |
600 |
800 |
|
Y-axis Travel (mm) |
300 |
400 |
|
Z-axis Mus ncig teb chaws (mm) |
400 |
500 |
|
Spindle Taper |
BT30/BT40 |
BT30/BT40 |
|
Spindle Ceev (rpm) |
6000 |
6000 |
|
Nws pib Tool Changer |
Tsis muaj (Manual Tool Change) |
Tsis muaj (Manual Tool Change) |
|
Hom kev taw qhia |
Ball Linear Guideways |
Ball Linear Guideways |
|
Table Load peev (kg) |
Tsawg dua los yog sib npaug li 400 |
Tsawg dua los yog sib npaug li 400 |
|
Positioning raug (mm) |
±0.01 |
±0.01 |
