Ceev ceev thiab raug ntsia hlau tsav

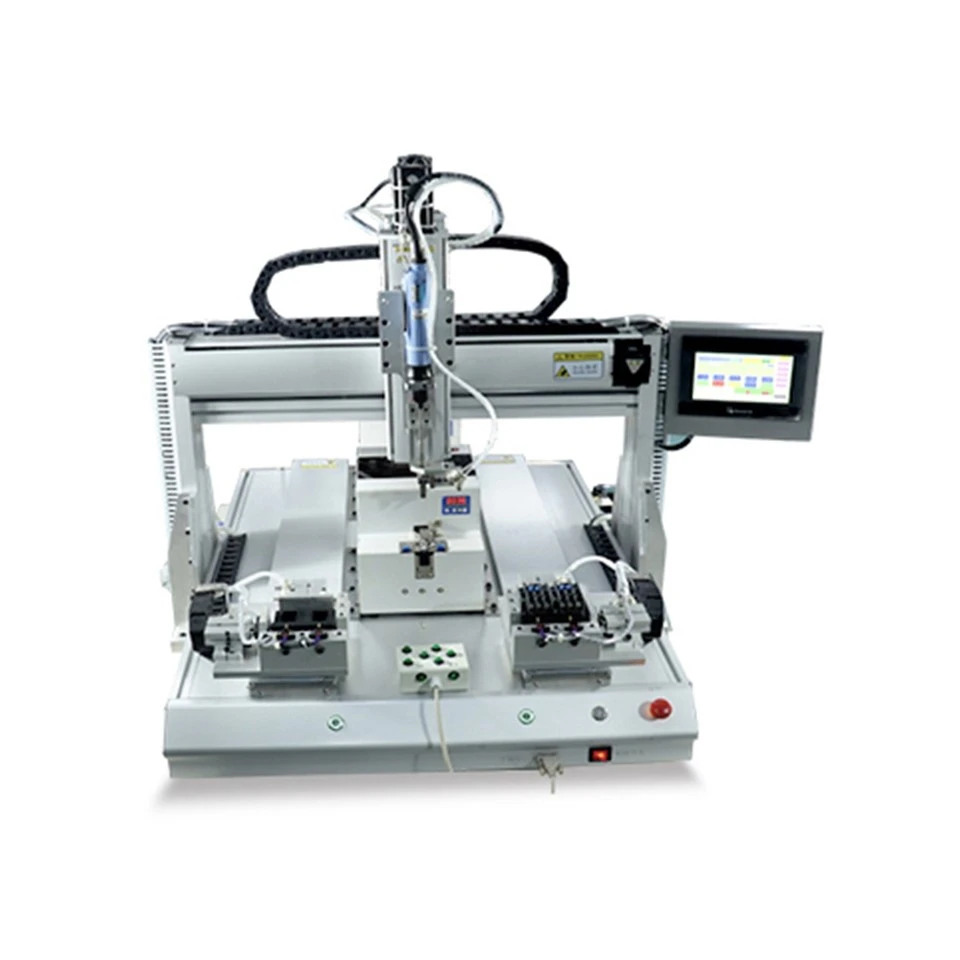

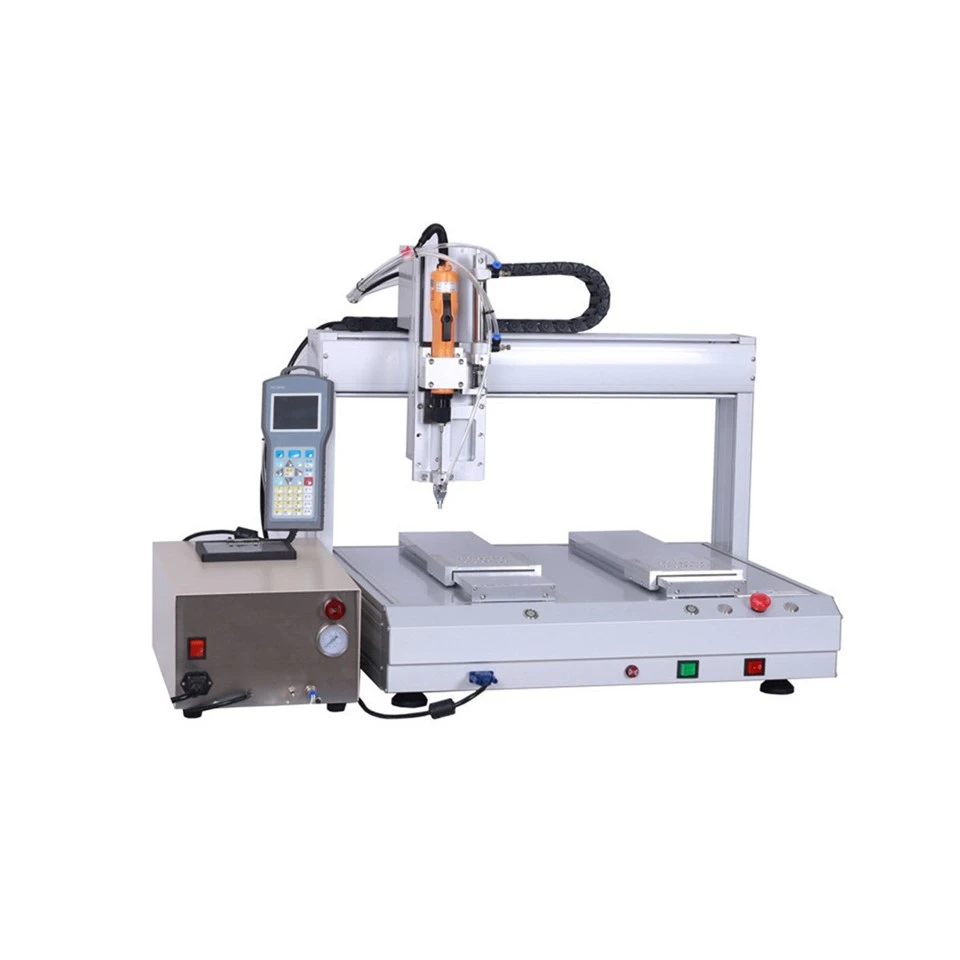

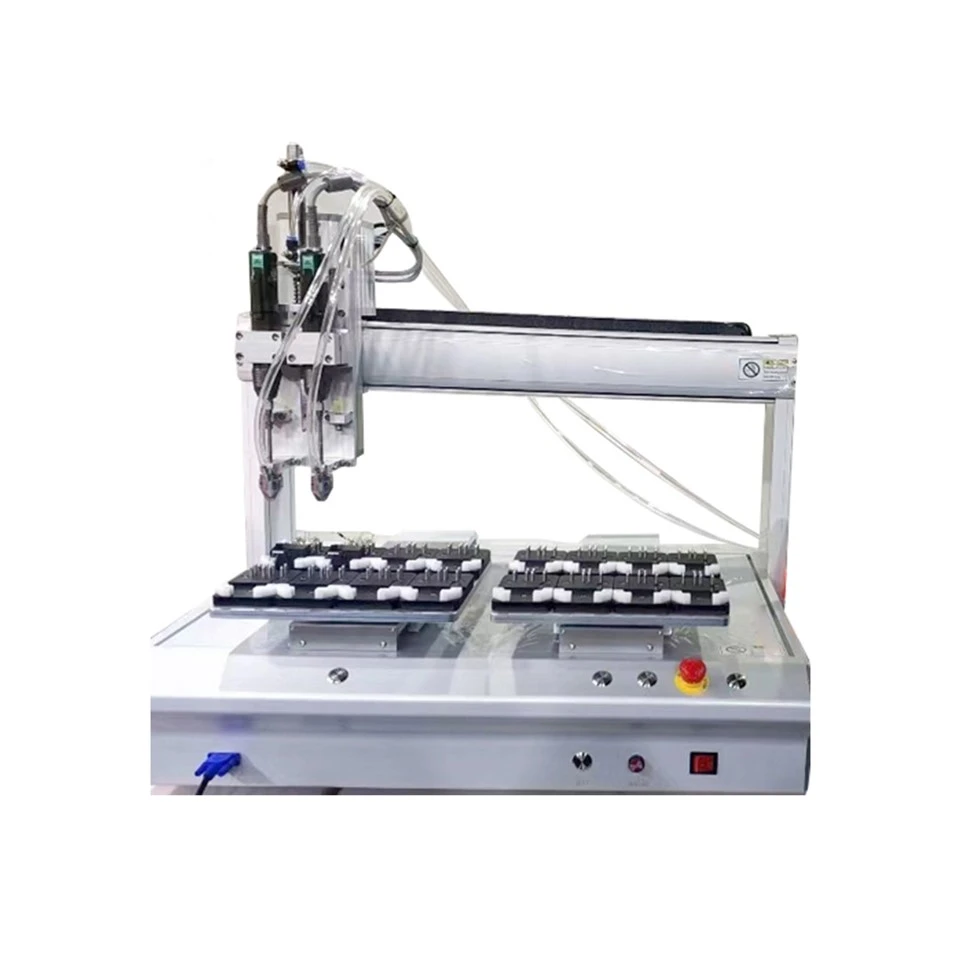

Peb lub tshuab tsis siv neeg ntsia hlau xauv yog rau siab - ntim cov ntsia hlau sib dhos. Nws ua haujlwm rau cov khoom siv hluav taws xob, khoom siv hauv tsev, thiab cov khoom siv tsheb. Peb muab ob txoj kev ua haujlwm. Lub tshuab- pub hom yog rau cov ntsia hlau ntev ntawm M1.0 txog M4.0. Screw ntev li ntawm 2mm mus rau 15mm. Compressed cua tshuab cov ntsia hlau mus rau me ntsis. Txoj kev no yog ceev thiab zoo rau siab - ntim ntau lawm. Lub tshuab nqus tsev- pub hom yog rau cov ntsia hlau me me los ntawm M0.6 txog M2.0. Nws siv lub tshuab nqus tsev nqus los khaws cov ntsia hlau. Lub tshuab nqus tsev siab yog -0.06 txog -0.09MPa. Qhov no ntseeg tau khaws cov screws me me heev.
Xaiv Txoj Kev Pub Noj Zoo
Ntau tus neeg yuav khoom tsuas yog saib tus nqi xwb. Lawv tsis quav ntsej cov ntsia hlau loj thiab txoj kev pub. Ib lub tuam txhab hluav taws xob tau yuav lub tshuab- pub tshuab rau M1.2 screws. Cov screws flipped thiab jammed nyob rau hauv lub pa raj. Qhov kev ua tsis tiav yog 15%. Lawv tau hloov mus rau lub tshuab nqus tsev- pub. Qhov kev ua tsis tiav tau poob qis dua 0.5%. Peb xyuas koj cov ntsia hlau loj thiab ntim ntau lawm. Tom qab ntawd peb pom zoo txoj hauv kev. XYZ rov ua qhov tseeb yog ± 0.015mm. Lub zog torque yog 0.05 txog 5 N·m. Tus neeg tsav tsheb servo nrog lub zog kaw- lub voj voog tawm tswv yim saib xyuas lub zog nruj ntawm lub sijhawm. Peb Tsis Siv Neeg Ntsia Hlau locking tshuab ceeb toom rau koj rau floating screws, stripped threads, los yog torque teeb meem. Nws kaw qhov chaw tsis zoo.
Ceev thiab Ntau -Axis Options
Lub screwing ceev yog 0.5 mus rau 1.5 vib nas this ib ntsia hlau. Rau ntau-axis qauv, koj tuaj yeem muaj 4, 6, lossis 8 axes ua haujlwm tib lub sijhawm. Cov ntsia hlau feeder tuav 2000 txog 5000 screws. Peb kawm txog cov teeb meem tshwm sim hauv koj qhov kev lag luam. Electronics xav tau torque ruaj khov. Cov khoom siv hauv tsev yuav tsum tiv thaiv cov ntsia hlau uas ploj lawm. Auto qhov chaw yuav tsum tau ua ntau yam qauv. Peb qhov kev pab cuam tom qab muag tau muab qhab nia. Rau A-chav kawm tshuab- teeb meem, peb teb hauv 2 teev. Rau B-chav kawm, peb muab kev daws teeb meem hauv 24 teev. Rau C-chav kawm, peb teb hauv ib hnub ua haujlwm. Standard tus me nyuam yog 1 lub hlis. Txhua qhov tsis siv neeg ntsia hlau xauv tshuab yog ntim rau hauv rooj plaub ntoo rau kev xa tawm.
Technical Parameters
|
Parameter |
Tshuab- feed Type |
Nqus - feed Type |
|
Siv tau Screw Size |
M1.0 ~ M4.0 |
M0.6 ~ M2.0 |
|
Ntsia Hlau Length (mm) |
2 ~ 15 |
1 ~ 6 |
|
Kev ntsuas qhov tseeb (mm) |
±0.02 |
±0.02 |
|
Z-axis Cushion Stroke (mm) |
10 |
5 |
|
Torque Range (Nm) |
0.05 ~ 5 |
0.02 ~ 1.5 |
|
Locking ceev (s / pc) |
0.5 ~ 1.5 |
0.8 ~ 2 |
|
Multi-axis Configuration |
4/6/8-axis Synchronous yeem |
4-axis Synchronous yeem |
|
XYZ Repeat Positioning Accuracy (mm) |
±0.015 |
±0.015 |
|
Lub tshuab nqus tsev siab (MPa) |
Tsis siv tau |
-0.06 ~ -0.09 |
|
Feeder Peev Xwm (pcs) |
2000 ~ 5000 |
2000 ~ 3000 |
|
Kev txheeb xyuas yuam kev |
Tam sim no saib xyuas + Torque tswb |
Tam sim no saib xyuas + Torque tswb |
